Supply vs Return Ductwork: Design Rules and Common Mistakes

Every forced-air HVAC system moves air in a continuous loop: conditioned air flows out through supply ducts, enters the occupied space, and returns through return ducts to be reconditioned. Simple in concept, but the design of these two subsystems follows completely different rules — and confusing those rules is one of the most common sources of comfort complaints, high energy bills, and premature equipment failure.

This guide breaks down the engineering principles behind supply and return ductwork, explains why they must be designed as a matched system, and identifies the mistakes that cause problems years after installation.

What Supply Ductwork Does

The supply side of the duct system carries conditioned air — cooled in summer, heated in winter — from the air handler or furnace to the occupied spaces. Supply air enters rooms at grilles or registers, typically sized to deliver between 50 and 150 FPM face velocity for residential work, and up to 500 FPM for commercial applications with proper diffusers.

Supply ductwork operates under positive pressure relative to the space. This means any leaks push conditioned air into wall cavities, attics, or crawl spaces — wasting energy and potentially creating moisture problems. SMACNA Seal Class A requires all supply duct seams and connections to be sealed with mastic or UL 181-listed tape.

Key supply ductwork design parameters:

• Friction rate: ACCA Manual D targets 0.08 to 0.10 inches WC per 100 feet of equivalent length for residential systems
• Velocity: Main trunk 600–900 FPM; branch runs 400–600 FPM; final runouts 300–400 FPM
• Total supply CFM: Must match blower output at design static pressure — typically 350–450 CFM per ton
• Outlet sizing: Each register sized for room CFM requirement from Manual J load calculation

Supply outlet placement matters as much as CFM delivery. In heating climates, floor registers below windows counteract cold glass downdrafts. In cooling climates, ceiling registers with side-throw diffusers create better mixing. Placing supply outlets against exterior walls maximizes comfort by washing the wall before air enters the occupied zone.

What Return Ductwork Does

Return ductwork operates under negative pressure, drawing room air back to the equipment. This negative pressure gradient means any leaks in return ducts pull in unconditioned air from attics, crawl spaces, garages, or wall cavities — degrading indoor air quality and dramatically reducing system efficiency.

The return system must be sized to handle the full system airflow with minimal resistance. Undersized returns are the single most common cause of low airflow complaints in residential installations. The blower does not care whether resistance comes from the supply side or the return side — it responds to total external static pressure.

Return sizing rules of thumb for residential systems:

• Minimum return grille area: 1 square inch free area per CFM of system airflow
• Return duct velocity: 400–600 FPM in main trunk; do not exceed 700 FPM at grille face
• Multiple returns: Required in systems with bedroom door closures; a single central return creates pressure imbalances when doors close
• Filter grille sizing: Filter grilles should target 300–350 FPM face velocity to minimize pressure drop across the filter

Return air must come from the conditioned space only. Never draw return air from garages (combustion gases), attics (moisture, insulation fibers), or crawl spaces (moisture, radon). These are code violations in most jurisdictions and create serious indoor air quality risks.

Pressure Balancing: The Linked System

Supply and return are not independent systems — they must be designed together to achieve pressure neutrality in each zone. When supply exceeds return capacity, rooms pressurize, pushing air out through gaps in the envelope. When return capacity exceeds supply, rooms depressurize, pulling air in from outside through leaks.

Both conditions cause problems:

• Overpressured rooms: Conditioned air escapes through envelope leaks, raising heating/cooling costs
• Depressurized rooms: Outdoor humidity, pollutants, and combustion gases infiltrate; can back-draft combustion appliances
• Pressure imbalances between floors: Create stack effect amplification, making upper floors hot and lower floors cold

The ACCA Manual D procedure addresses pressure balance through the concept of available static pressure (ASP). The total static pressure available from the blower — minus equipment pressure drops for coils, filters, and plenums — is divided between supply and return according to their respective duct lengths and configurations. A well-designed system typically allocates 55–60% of ASP to supply and 40–45% to return.

In practice, pressure balance is verified with a manometer. Measure static pressure in each bedroom with the door closed versus open. A pressure difference greater than 3 Pa (0.012 inches WC) indicates inadequate return air transfer — either through undercut doors, transfer grilles, or dedicated return ducts in each bedroom.

Common Design Mistakes

The following mistakes appear repeatedly in service calls and energy audits:

Single central return serving a multi-room house. This is the most prevalent residential error. A single return in the hallway cannot maintain pressure balance when bedroom doors close. Each closed door creates a pressurized room (supply air in, no way out) and simultaneously starves the central return. Airflow drops, the blower works harder, and comfort suffers. The fix is transfer grilles, jumper ducts, or dedicated returns in each bedroom.

Undersized return trunk. Contractors often spend design time on supply branch sizing and trunk-down layouts, then throw in whatever return duct fits the available space. A return trunk sized for 600 FPM that should be at 400 FPM adds 0.15–0.20 inches WC of unnecessary static pressure — enough to shift the blower into a different operating point and reduce total airflow by 10–15%.

Return plenum leaks. In platform returns — where the space between floor joists or above a dropped ceiling is used as a return plenum — leaks are inevitable unless all penetrations are sealed. Platform returns that pass through unconditioned spaces violate codes in most jurisdictions and create efficiency losses of 20–30%.

Supply registers too close to return grilles. Short-circuiting occurs when supply and return are placed in close proximity on the same wall. Conditioned air moves directly from supply to return without entering the occupied zone. The space sees adequate airflow on paper but poor mixing in practice.

Mixing supply and return in the same duct chase. Running supply and return ducts through the same uninsulated chase in an attic or crawl space allows thermal transfer between the systems. In cooling mode, return duct heat gain can raise supply air temperature 2–4°F before it reaches the register.

Material and Gauge Considerations

Supply and return ducts have different requirements because they operate under different pressures and temperatures.

Supply ducts carrying conditioned air should be insulated to prevent condensation (cooling mode) and heat loss (heating mode). IECC 2021 requires minimum R-6 insulation for ducts in unconditioned spaces, R-8 in climate zones 3 and above. Supply ducts also carry the full system air velocity, so construction quality — tight seams, proper gauge for the duct size — matters for noise and longevity.

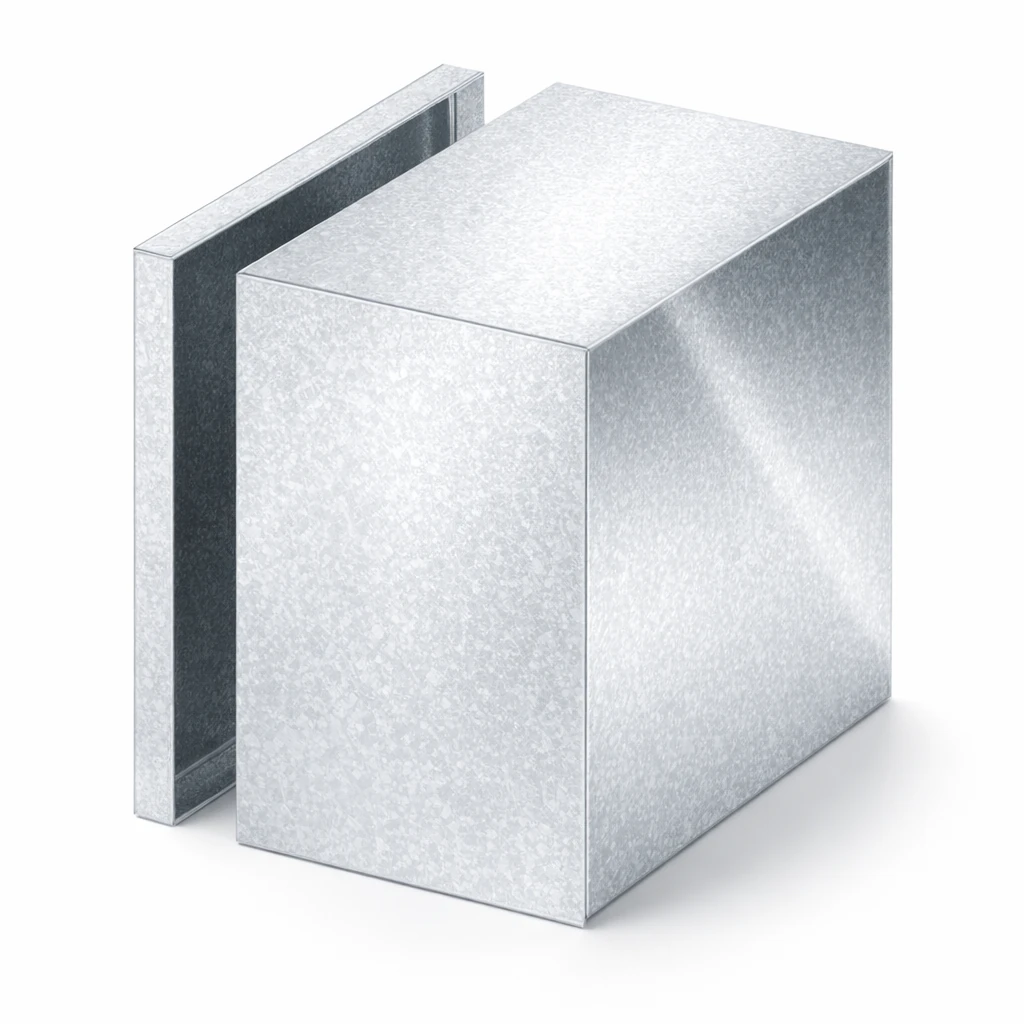

Return ducts typically run at lower velocities and are not as prone to condensation in most climates, but they must be well-sealed because negative pressure amplifies leak effects. Return ductwork in commercial systems should be the same gauge as supply; in residential, 26-gauge galvanized is standard for both.

Duct gauge selection by width for rectangular ducts:

• Up to 30 inches: 26-gauge galvanized
• 31–60 inches: 24-gauge galvanized
• Over 60 inches: 22-gauge or heavier, with intermediate bracing

Verification After Installation

A properly installed supply/return system should be verified with these measurements before the job is complete:

• Total system airflow: Measure with a flow hood at each supply register; sum should match blower rated CFM ±10%
• External static pressure: Measure supply and return static pressure at the air handler; total should be within manufacturer's rated range
• Room pressure: Each room with door closed should be within ±3 Pa of hallway pressure
• Duct leakage: Total system leakage to outside should be <4% of system CFM for new construction per ENERGY STAR
• Temperature rise/drop: Measure supply air temperature at 3–5 registers; variation greater than 2°F suggests airflow imbalances or duct leakage
