How to Install a Wye Duct Fitting: Angles, Sizing, Steps

The wye fitting is one of the most flow-friendly ways to branch air from a trunk line, yet it is also one of the most misunderstood fittings in residential and commercial HVAC. Choose the wrong branch angle, size the outlets incorrectly, or orient the fitting in the wrong plane, and you create an unbalanced split that starves one branch while flooding the other. This guide covers the mechanics of wye fittings and how to install them correctly.

Why a Wye Instead of a Tee?

A standard tee fitting extracts branch air at 90 degrees from the trunk. This abrupt direction change creates a separation zone at the inner corner of the branch - air has to make a sharp turn, which costs static pressure and generates turbulence. The loss coefficient for the branch leg of a typical tee fitting ranges from 0.8 to 1.3, meaning most of the available velocity pressure is lost in the fitting.

A wye fitting angles the branch at 30 to 45 degrees from the trunk centerline. Air "peels off" the main flow stream at a shallow angle, maintaining more of its velocity and recovering it as static pressure in the branch run. Branch loss coefficients for well-designed wye fittings run 0.15 to 0.35 - a 3 to 5x improvement over a tee.

The tradeoff is space. A wye fitting occupies more length along the trunk than a tee, because the angled branch extends the fitting body upstream. In tight ceilings or when trunk runs are short, the tee may be the only practical option.

Branch Angle Selection

The branch angle is the most critical design parameter for a wye fitting. Standard angles are 30, 45, and 60 degrees. Each trades off differently:

For most residential and light commercial applications, a 45-degree wye provides the best balance of performance and space. For commercial systems with velocities above 1,200 FPM or runs exceeding 100 equivalent feet, the 30-degree wye delivers meaningfully lower static pressure and is worth the extra trunk length.

Sizing the Wye Branches

The two most critical sizing rules for a wye fitting:

Rule 1: The sum of the outlet areas should equal or exceed the inlet area. If the inlet is 20" × 10" (200 sq. in.), and you split into two branches, each branch should have at least 100 sq. in. of cross-section - for example, 12" × 8" = 96 sq. in. each. Going significantly below 100% combined area accelerates velocity through the fitting and increases pressure loss.

Rule 2: Size each branch for its CFM, not for symmetry. If the inlet carries 1,200 CFM and splits 700/500, the larger branch should have proportionally more area. Use the design velocity to back-calculate the required area: Area = CFM / Target Velocity. At 800 FPM design velocity, the 700 CFM branch needs 700/800 = 0.875 sq. ft. = 126 sq. in. The 500 CFM branch needs 500/800 = 0.625 sq. ft. = 90 sq. in.

Worked Example: From CFM Split to Duct Sizes

The areas from Rule 2 are targets, not duct sizes. Here is the same 1,200 CFM trunk with a 700/500 split carried through to dimensions you can order, holding a 10" duct depth on all three openings.

• Inlet, 1,200 CFM: 1,200 ÷ 800 FPM = 1.50 sq. ft. = 216 sq. in. A 22" × 10" trunk is 220 sq. in. and runs at 785 FPM.
• Straight outlet, 700 CFM: needs 126 sq. in. A 14" × 10" outlet is 140 sq. in. and runs at 720 FPM.
• Branch, 500 CFM: needs 90 sq. in. A 10" × 10" branch is 100 sq. in. and runs at 720 FPM.

Now check Rule 1. The outlets total 140 + 100 = 240 sq. in. against 220 sq. in. of inlet, which is 109% of the inlet area, so the air does not accelerate through the fitting. If the outlets are round, the equal-area diameter is D = 2 × √(area ÷ π). That gives 12.7" for the 700 CFM leg (use 14" round, 655 FPM) and 10.7" for the 500 CFM leg (use 12" round, 637 FPM).

For other splits, size each outlet from the airflow it carries. CFM = area in sq. ft. × velocity:

Pick the smallest size whose CFM at your design velocity covers the leg, then confirm the two outlet areas add up to at least the inlet area.

Straight-Through vs Symmetrical Wye Configurations

Wye fittings come in two configurations:

Straight-through wye (conical wye). The trunk continues straight through, and one branch angles off to the side. This is the standard configuration - one inlet, one straight outlet (reduced in size to account for the branch take-off), and one angled branch. The straight-through leg has lower pressure loss than the branch because the air does not change direction.

Symmetrical wye. The trunk splits into two equal branches at equal angles, with no straight-through leg. This is used when the system splits evenly at a central point. Both legs have identical loss coefficients. Symmetrical wyes are common at the end of supply plenums and in radial duct systems.

Orientation: Which Way Does the Wye Face?

For horizontal trunk lines, wye fittings should branch horizontally - the branch should depart in the horizontal plane, not drop down vertically. A vertically-oriented wye creates a low point where condensate can pool in cooling mode. It also places the branch collar at the bottom of the trunk where it is most vulnerable to dirt accumulation and where sealing is most difficult.

The preferred configuration is a wye fitting with the branch departing in the same horizontal plane as the trunk, angled to the side. If the branch must go up or down, use a straight-through wye and add a separate elbow at the branch outlet rather than twisting the wye fitting itself.

Installation Steps

1. Verify dimensions before cutting the trunk. The wye fitting has a specific throat length - the distance the fitting extends along the trunk upstream of the branch centerline. Mark this distance on the trunk before making any cuts.
2. Cut the trunk opening cleanly. Use aviation snips or a plasma cutter for a clean edge. A ragged trunk opening inside the fitting creates turbulence at the point of highest velocity.
3. Slide the fitting over the upstream trunk section. For slip connections, the wye slides over the upstream duct by at least 1 inch. For drive connections, the trunk end receives a drive cleat before sliding in.
4. Align the branch in the correct plane. Use a level to confirm the branch is horizontal before fastening. Sheet metal screws through the fitting collar into the trunk at 6-inch spacing on each seam.
5. Seal all seams with mastic. Apply UL 181B-rated mastic to every seam and fastener. The wye fitting body, the upstream connection, the straight outlet, and the branch outlet all require sealing. Wye fittings have more linear seam footage than other fittings - do not shortcut this step.
6. Connect downstream ductwork to both outlets. Ensure downstream duct sections are properly supported so they do not pull the branch outlet out of alignment under load.

Common Installation Mistakes

• Installing the wye backwards. The tapered body of the fitting is aerodynamically designed for a specific flow direction. Installing it backwards adds turbulence and increases loss. The larger end is always the inlet.

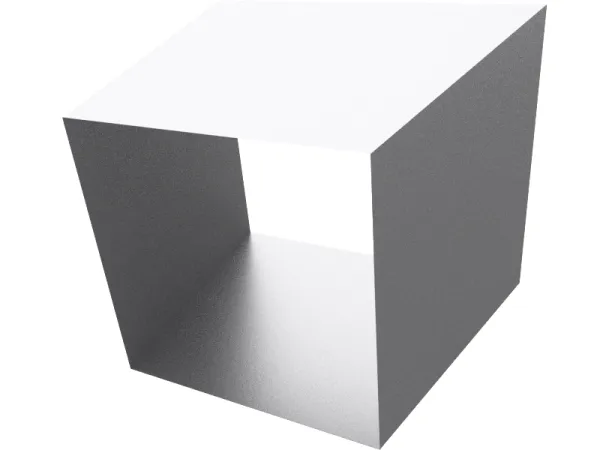

• Skipping the trunk reducer after the wye. After the wye takes air off the trunk, the remaining trunk is carrying less CFM. If the trunk stays the same size, velocity drops and registers downstream of the wye get less air pressure than those upstream. Reduce the trunk after every major branch takeoff.
• Using mismatched branch and outlet sizes. A wye fitting ordered with a 10" × 8" branch connector mated to a 12" × 8" downstream duct requires a field-fabricated adapter. Order the fitting with the correct branch size to begin with.

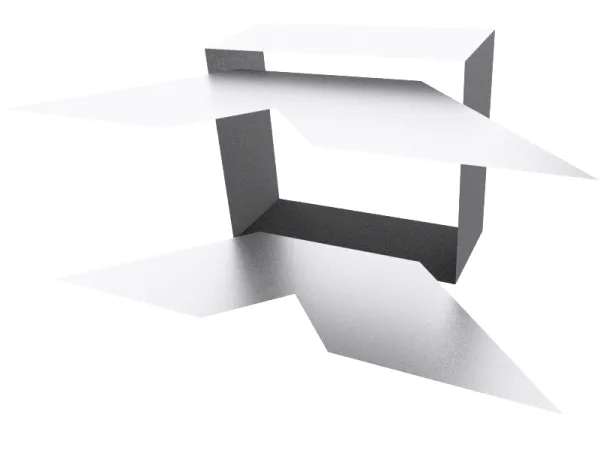

PMX Ductwork fabricates custom wye fittings in any branch angle from 30 to 60 degrees, any inlet and outlet dimensions, in galvanized, aluminum, or stainless steel. Both straight-through and symmetrical configurations are available with instant online pricing.

Frequently Asked Questions

Which way does a wye duct fitting go?

The larger end of a wye is always the inlet, and the branch angles away in the direction of airflow. Installing it backwards adds turbulence and increases pressure loss. On a horizontal trunk, the branch should leave to the side in the same horizontal plane, not drop down, because a vertical branch creates a low point where condensate can pool in cooling mode.

What angle should a wye duct branch be?

A 45 degree wye is the right choice for most residential and light commercial work because it balances low pressure loss with a reasonable fitting length. Use a 30 degree wye on commercial systems with velocities above 1,200 FPM or runs over 100 equivalent feet. Use a 60 degree wye only where space is tight and the run is short.

How do you size the outlets of a wye fitting?

Size each outlet for the CFM it carries: area equals CFM divided by design velocity. At 800 FPM, a 700 CFM leg needs 126 square inches and a 500 CFM leg needs 90 square inches. Then confirm the two outlet areas together equal or exceed the inlet area, so the air does not speed up through the fitting.

Do you need to reduce the trunk after a wye?

Yes. After the wye takes air off the trunk, the remaining trunk carries less CFM. If it stays the same size, velocity drops and the registers downstream of the wye get less air pressure than those upstream. Reduce the trunk after every major branch takeoff so velocity stays close to the design value along the whole run.
